The High-Volume, Hi Speed, Self Service Digital Document Center
Get all of the latest, software, drivers, manuals for your BookScan Station. If you have any further questions, contact our Technical Support team for assistance.
PC Specifications
| Processor |
3rd Gen. Intel Core i3 – 3.1GHz |
| Memory |
4GB DDR3 DIMM – Expandable up to 16GB |
| Hard Disk Drive |
320GB SATA |
| USB Ports |
4 x USB 2.0 / 2 x USB 3.0 (2 on I/O, 1 x Front Access) |
| Serial Ports |
2 x RS-232 (standard) |
| Ethernet Ports |
1 x LAN RJ45 (Gigabit) |
| Wireless |
Included (802.11 b/g/n) |
| Display |
17.0″ diagonal, active matrix TFT LCD (LED) |
| Power Supply |
External 19VDC universal-type power supply brick |
| Dimensions |
15.64″x 15.40″ x 2.86″ (397.29 x 391.07 x 251.7mm) |
| Weight w/Stand |
15.95lbs (7.24kg) |
| Optional Magnetic Stripe Reader |
Reads up to 3 tracks of information |
Flatbed Scanner Specifications
| Throughput Speed: |
4.5 sec. Color, B/W at 200/300 DPI 6.0 sec. Color, B/W at 200/300 DPI (Includes Back Home) |
| Scanning Type |
Flatbed, ADF (optional) |
| Scanning Technology |
CCD |
| Light Source |
LED |
| Color mode |
48bits input 24bits output |
| Grayscale mode |
16bits input 8bits output |
| Recommended Daily Volume |
5000 pages |
| Optical Resolution (dpi) |
600 DPI |
| Flatbed Maximum |
11.8 x 17 in (300 x 432 mm) |
| Interface |
USB 2.0 |
| Power Consumption |
< 38.4 W |
| Electrical Requirements |
Input: 100-240 VAC, 50/60 HzOutput: 24V, 2.0A |
| Dimensions (W x D x H) |
25.4 x 16.9 x 5.3 in (645 x 428 x 135 mm) |
| Weight |
16.8 lbs. (7.6 kg |
Document Scanner Specifications
| Throughput Speed:* |
60 PPM/120 IPM @ 200 DPI Color or B/W 40 PPM/80 IPM @ 300 DPI Color or B/W |
| Scanner Type |
Automatic Document Feeder, Duplex |
| Scanning Technology |
Charged-Coupled Device (CCD) |
| Light Source |
LED |
| Scanning Mode |
48-Bit Color, 16-Bit Grayscale, and Black & White |
| Optical Resolution |
600 dpi |
| ADF Capacity |
80 Pages |
| ADF Minimum |
2 x 2 in (50 x 50 mm) |
| ADF Maximum |
8.5 x 14 in (216 x 356 mm) |
| Connectivity |
USB 2.0 |
| Recommended Daily Volume |
6000 pages |
| Electrical Requirements |
Input: 100-240 VAC, 50-60 Hz Output: 24V, 1.0A |
| Dimensions (WxDxH) |
12.4 x 26.8 x 9.4 in (316 x 680 x 239) |
| Weight |
9.25 lbs. (4.2 kg) |
| Blank Page Detection |
Yes |

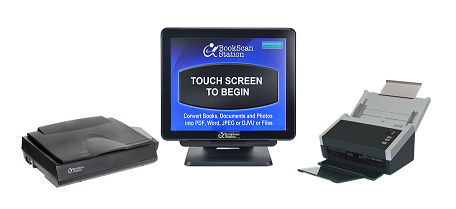

BookScan Station Document Center Configuration:
BookScan Station 3070X
iVina FB6280E
Avision AD240
